Conveyor Belt
Material: ss310,ss316,ss304,High Carbon Steel, Aluminum, Galvanized, Nichrome, etc.
Wire Diameter: Normally from 0.8mm～5.0mm
Application: High heat treatment, forging, foundry, food processing, electronic industry
Types: Standard balanced, double balanced, compound balanced, chain edge
Wire Diameter: Normally from 0.8mm～5.0mm
Application: High heat treatment, forging, foundry, food processing, electronic industry
Types: Standard balanced, double balanced, compound balanced, chain edge
Material: ss310,ss316,ss304,High Carbon Steel, Aluminum, Galvanized, Nichrome, etc.
Wire Diameter: Normally from 0.8mm～5.0mm
Application: High heat treatment, forging, foundry, food processing, electronic industry
Types: Standard balanced, double balanced, compound balanced, chain edge
Wire Diameter: Normally from 0.8mm～5.0mm
Application: High heat treatment, forging, foundry, food processing, electronic industry
Types: Standard balanced, double balanced, compound balanced, chain edge

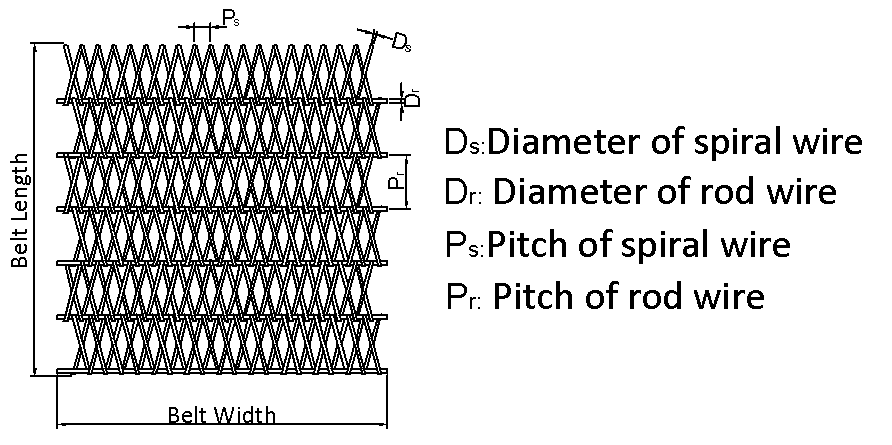

Stander balanced(B)
The most commonly used conveyor belt. The left and right hand spirals interlocked by the crimped or straight wires, give the belt excellent tracking properties.
Applications: Electronics industry, annealing furnaces, heat treatment furnaces, washing, food machinery, etc.
Double balanced(DB
Double balanced belt is similar to standard balanced belt constructing. However, it incorporates pairs o right and left hand spiral joined at crimped or straight rods. This construction offers straight tracking and strength than a standard balanced belt.
Applications: Electronics industry, food industry, metallurgy and other transportation agencies.
Applications: Electronics industry, food industry, metallurgy and other transportation agencies.

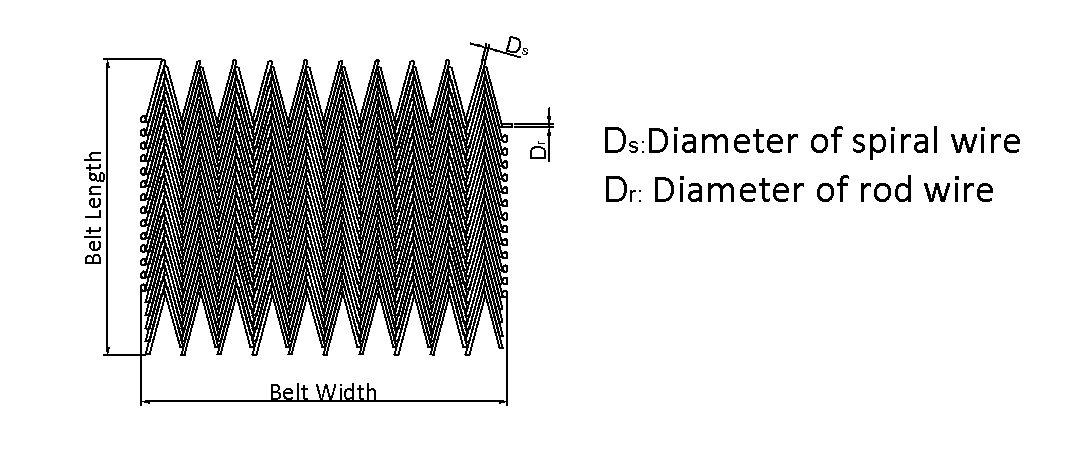

Compound balanced(CB)
Compound balanced(CB): Compound balanced belt constructed with right and left hand spirals interconnecting by straight cross wires.
It’s the preferred belt for conveying small parts and heavy loads.
Applications: Quenching furnaces, small-size workpiece conveyor, forging machinery, chemical fiber industry, glass annealing furnace and so on.
It’s the preferred belt for conveying small parts and heavy loads.
Applications: Quenching furnaces, small-size workpiece conveyor, forging machinery, chemical fiber industry, glass annealing furnace and so on.
Chain edge
Chain conveyor belts assure correct movement under the most difficult conditions. Connecting by a combination of rods and sprockets, the chain belts possess capacities to heavier carry and longer life.
Applications: Used widely in metallurgy, mechanical industry, automatic transmission lines and large load automatic line, food industry.
Applications: Used widely in metallurgy, mechanical industry, automatic transmission lines and large load automatic line, food industry.
